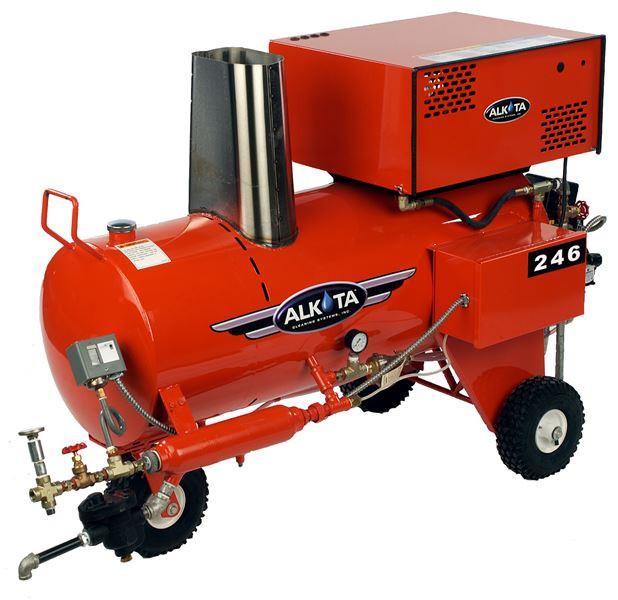

Alkota 246  Dry Steam Generator

Alkota 246 Dry Steam Generator

  • Oil Fired
  • Electric
  • Portable
  • Pneumatic wheels
  • 14 boiler horsepower
  • Belt driven tri-plex pump
  • High-efficiency electric motor
  • Non-corrosive float tank



Specifications:

Heat Input

630000 Btu/hr

Heat Output

Up to 14 bhp

Operating Power

80 to 100 psi

Pump Motor Power

1/2 hp

Fuel Consumption Capacity

4.5 gal/h

Motor Frequency

60 Hz

Motor Voltage

115 V

Phase

1

Pump Style

Oil Bath CrankcaseTriplex Ceramic Plunger

Coil Type

Cold Water WrapRemovableSpiral WoundSteel Pipe

Burner Type

Diesel Fired Power Burner

Length

63 in

Width

29 in

Height

43 in

Controls

90 second Delay on Pump Shut Off90 second Delay Timer on Burner Start UpManual Reset High Limit ControlOil primary ControlPressure GaugePressure SwitchRelief ValveSteam SeparatorSteam TrapTemperature ControlThermometer

Wheel Type

Ball Bearing, Pneumatic

Flow Rate

1 gpm

Pressure

100 psi

Weight

725 lb
