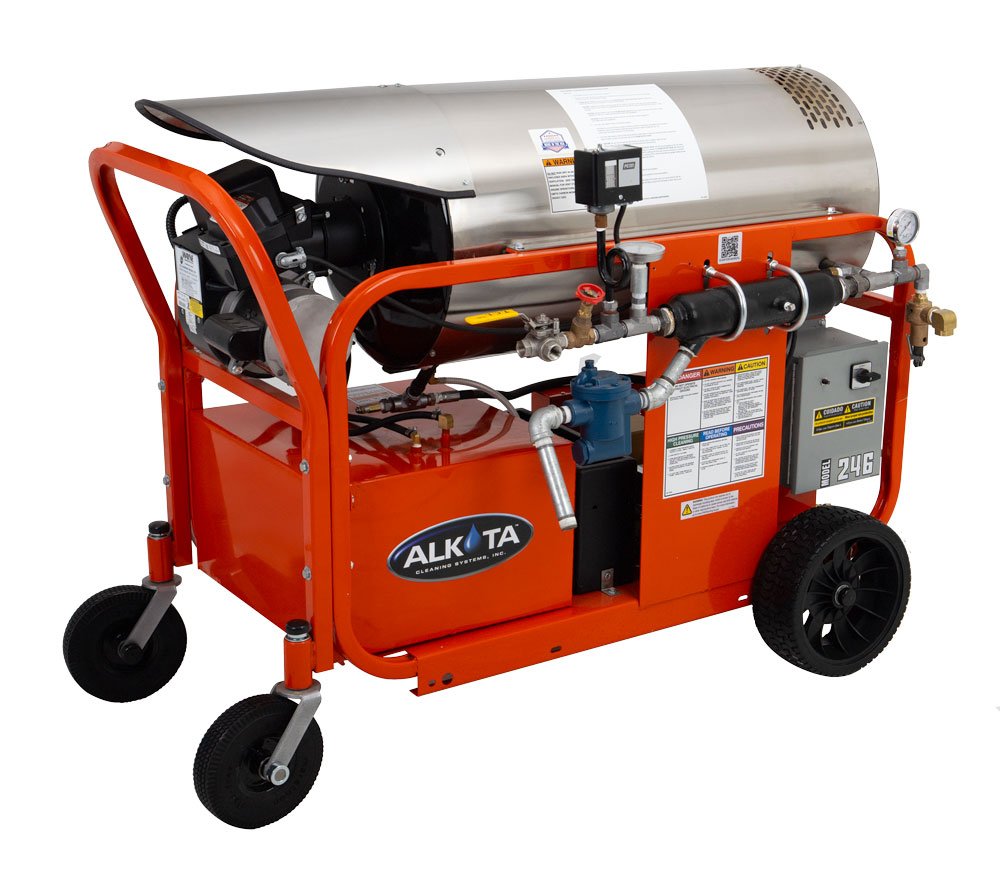

Alkota 246EN Dry Steam Generator
- Oil Fired Heat
- Electric 115V
- 1 GPH at 100 PSI
-
Portable
Specifications:
|
Heat Input |
630000 Btu/hr |
|
Heat Output |
Up to 14 bhp |
|
Operating Power |
50 to 80 psi |
|
Pump Motor Power |
3/4 hp |
|
Fuel Consumption Capacity |
5 gal/h |
|
Motor Frequency |
60 Hz |
|
Motor Voltage |
115 V., 60 HZ, 1 PH, 15 AMP |
|
Phase |
1 |
|
Pump Style |
Belt Drive, Oil Bath Triplex Plunger Pump |
|
Coil Type |
Horizontal Configuration Spiral Wound Schedule 80 AST-53 Steel Pipe, Cold Water Wrap |
|
Burner Type |
Diesel-Fired Power Burner |
|
Length |
87 in |
|
Width |
42 in |
|
Height |
42 in |
|
Controls |
Pressure Switch, Pressure Gauge, Temperature Gauge, Rotary 3 Position Switch - Off/Pump/Burner |
|
Wheel Type |
Non-Flat Wheels with Swivel Casters for ease of portability |
|
Flow Rate |
1 gpm |
|
Pressure |
100 psi |
|
Weight |
725 lb |
